Rotary Die-Cutter
Corrugated board converting machines for corrugated box production
The flexo printer rotary die cutter offers advanced automation, allowing one touch job changeovers and pressure adjustments directly on the control screen, greatly reducing labor requirements. The system supports precise 1 to 6 color registration and prints almost any graphic while maintaining long term registration stability.
Machines are supplied worldwide, enabling buyers to observe running equipment within their own region, and customers are welcome to visit the factory. The die-cutter produces standard slotted boxes and special shape boxes, covering all box types within a defined size range.
Multiple configurations are available, including high definition and standard printing models as well as high speed and medium speed equipment, providing flexible options for various production needs.

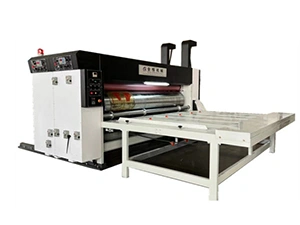

Corrugated board converting machine with chain feeder for flexo printing, slotting and die-cutting
- Max. sheet pass size, mm: 900x2000 / 1200x2500 / 1400x2500 / 1600x2900, etc.
- Design speed, pcs/min: 80
- Feeding unit: Chain-driven feeding platform
Corrugated board converting machine with lead edge feeder for flexo printing, slotting, die-cutting and stacking
- Max. sheet pass size, mm: 900x2000 / 1200x2500 / 1400x2500 / 1600x2900, etc.
- Design speed, pcs/min: 80
- Feeding unit: Chain-driven feeding platform
Corrugated board converting machine with lead edge feeder for flexo printing, slotting, die-cutting and stacking
- Max. sheet pass size, mm: 900x2000 / 1200x2500 / 1400x2500 / 1600x2900, etc.
- Design speed, pcs/min: 200 / 300 / 400
- Feeding unit: Light-pressure, pressure-free
Corrugated board converting machine with lead edge feeder for flexo printing, slotting, die-cutting and stacking
- Max. sheet pass size, mm: 900x2000 / 1200x2500 / 1400x2500 / 1600x2900, etc.
- Design speed, pcs/min: 200 / 300 / 400
- Feeding unit: Light-pressure, pressure-free
Corrugated board converting machine with lead edge feeder for flexo printing, slotting, die-cutting and stacking
- Max. sheet pass size, mm: 900x2000 / 1200x2500 / 1400x2500 / 1600x2900, etc.
- Design speed, pcs/min: 200 / 300 / 400
- Feeder unit: Servo-driven, zero-pressure feeding
