2-Ply Corrugated Cardboard Production Line

The 2-ply corrugated cardboard production line ss mainly used for producing single-face corrugated board. The equipment features high efficiency, a high degree of automation, and wide applicability, and is widely used in packaging cartons for food, beverages, pharmaceuticals, tobacco, and alcohol industries.

Learn More

3-Ply Corrugated Cardboard Production Line

The 3-ply corrugated cardboard production line is mainly used for standard outer packaging boxes and is suitable for daily necessities, courier boxes, and other applications requiring a balance of strength and cost. Its structure consists of facing paper, corrugated medium, and backing paper, providing moderate compressive strength and cushioning performance.

Learn More

5-Ply Corrugated Cardboard Production Line

The 5-ply corrugated cardboard production line is an automated system for manufacturing 5-ply corrugated board. Its core function is to process five layers of corrugated paper through fluting, gluing, and laminating.

Learn More

7-Ply Corrugated Cardboard Production Line

The 7-ply corrugated cardboard production line is used for manufacturing 7-ply corrugated board and mainly consists of pre-heater machine, glue machine, single facer machine, double facer machine, drying equipment, cutting system, and stacking machine.

Learn More

Corrugated Cardboard Machines

Hydraulic Mill Roll Stand

Shaftless reel stand for secure paper roll holding and automatic web feeding in corrugator lines

Pre-Heater Machine

Corrugator preheater unit for precise heat and moisture control to ensure consistent corrugating quality

Single Facer Machine, Cassette Type

Corrugating machine for high-precision flute forming with a quick-change cassette system

Single-Layer Glue Machine for Corrugated Board

Glue unit for precise and uniform adhesive application in corrugator lines

Duplex Glue Machine for 5-Ply Corrugated Board Production

Double-layer glue unit for precise adhesive application in 5-layer corrugator lines

Triplex Glue Machine for 7-Ply Corrugated Board Production

Triple-layer glue unit for precise adhesive application in 7-layer corrugator lines

Double Facer Machine

Hot plate section for multi-ply corrugated board production through uniform heating and pressure bonding

Thin Blade Slitter Scorer Machine

Slitting and scoring section for high-precision cutting and creasing of corrugated board

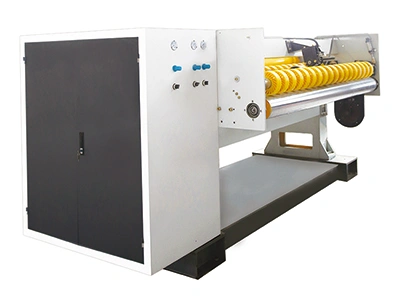

NC Cut-Off Machine

High-speed cross cutter for precise cutting and stable length control of corrugated board

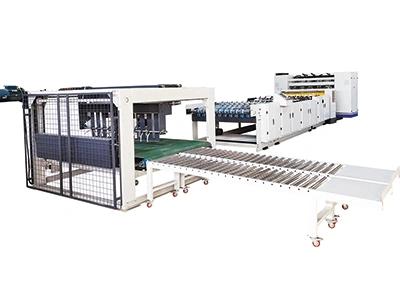

2-Ply Slitter Cut-Off Stacker Machine

Combination of slitter, cut-off and stacker for 2-ply corrugated sheet processing

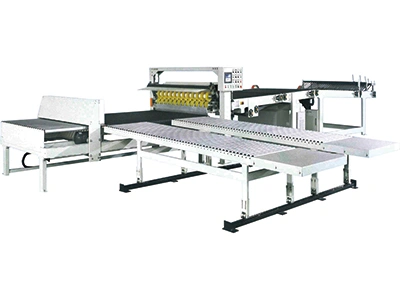

Sheet Cutter Stacker Machine

Automatic corrugated sheet cutting and stacking machine for high-efficiency corrugated board production

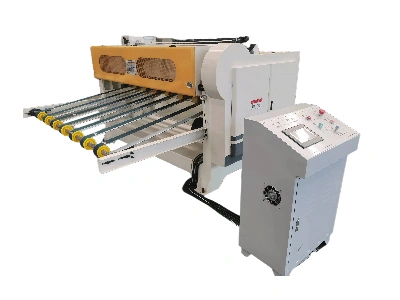

NC Sheet Cutter Machine

Automatic corrugated sheet cutting machine for multi-size corrugated board production

Learn More

Customer Cases

Learn about the company’s capability and delivery options. Discover real-world examples highlight tailored solutions, turnkey projects, and long-term partnerships.

Mexico Printing Solutions for a Customer from Mexico

Brazilian Printing Equipment for Brazilian Customer

Chilean Long-Term Partnership with Chilean Customer

What types of corrugated board can your production line manufacture?

The available production lines can produce a wide range of single-face and multi-layer corrugated boards, including A-, B-, C-, E-, and F-flutes, as well as 3-ply, 5-ply, and 7-ply structures. Different flute heights and pitches can be configured to meet applications from lightweight packaging to heavy-duty transport.

Can the corrugated board production line support flexible switching between different board specifications?

Yes. The equipment allows one-touch adjustment of board width (typically 1400-2500 mm) and layer parameters, enabling continuous production of various sizes and ply counts without long downtime for mechanical changeovers.

Can the production line switch between different flute combinations or board layers on the same line?

Certain models support flexible switching among 3-ply, 5-ply, and 7-ply board structures and multiple flute combinations on a single line, allowing fast order changes and significantly reducing manual setup.

Does the equipment support special flutes, single-face board, or double-wall structures?

Yes. In addition to standard 3-layer boards, our lines can produce single-face board, double-wall combinations (such as BC, BE), and other composite structures, supporting the development of specialty packaging with enhanced strength and cushioning.

How strong is the corrugated board produced by QH-PACK equipment?

QH-PACK lines use high-precision corrugating rolls and an intelligent tension-control system to ensure excellent bonding between layers. The resulting board delivers superior compression strength, load-bearing performance, and cushioning, fully meeting packaging standards for logistics, e-commerce, home appliances, and heavy-duty industries.

Can the equipment develop special structures or non-standard boards for customized box designs?

Absolutely. The equipment can adjust flute profiles, liner/medium combinations, and bonding methods according to order requirements. It also supports slotting, punching, and window-cutting processes to help customers develop corner-protectors, inserts, gift-box components, and other functional structures.

Can the corrugated board line be customized for non-standard widths or special paper requirements?

Yes. QH-PACK offers non-standard customization based on plant layout, raw paper width, and special application needs, including ultra-wide formats, high basis-weight materials, and specialty paper types.

How stable and precise is the production line?

All main units, drive components, and control systems use high-quality imported parts. With automatic temperature, tension, and alignment control, the line produces corrugated boards with uniform thickness, strong adhesion, and extremely low deviation.

How does the equipment perform in terms of energy-saving and environmental protection?

The production line features high-efficiency motors, multiple heating-method options, and an automatic waste collection system to reduce energy consumption and material waste, supporting greener, more economical production.
