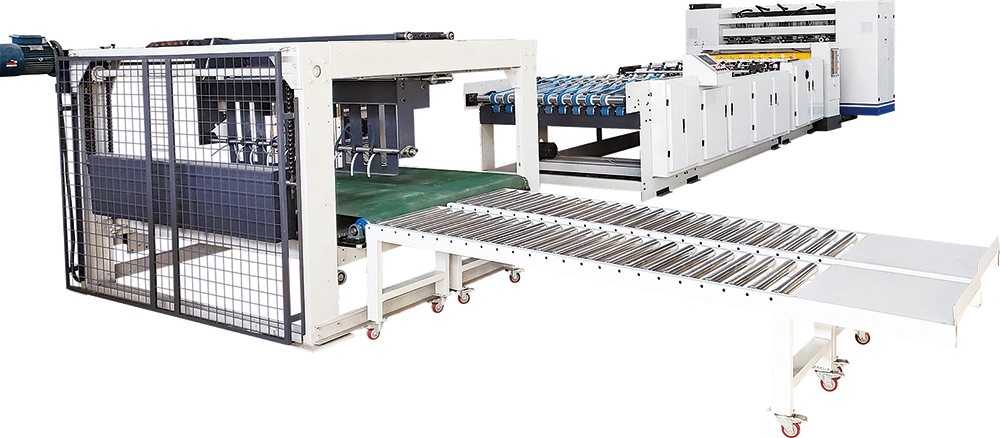

2-Ply Slitter Cut-Off Stacker Machine
Combination of slitter, cut-off and stacker for 2-ply corrugated sheet processing
Request a Quote
2-ply slitter cut-off stacker machine is an automated system used to slit and cross-cut large corrugated board sheets (typically composed of two layers of kraft paper) according to order specifications. It cuts the sheets into the required widths and lengths and automatically stacks them for subsequent printing or finishing processes.
- Cross-cutting mechanism lifespan exceeds 8 million meters
- Maximum stacking length up to 1.6 meters
- Supports storage of 200 order parameters
Features
- Stores up to 200 order parameters with real-time touchscreen management; fast order change in only 1-3 seconds is ideal for multi-order.
- Equipped with a German KEB servo system for synchronization accuracy, low-noise operation, and precise cutting and transmission performance.
- Uses thin tungsten-steel alloy blades with automatic or manual sharpening; each blade has a lifespan of over 8 million meters.
- Intelligent stacking platform supports up to 1.6-meter stacking length for various board sizes.
- Main frame constructed with gray cast-iron side panels, offering rigidity and vibration resistance, ensuring cutting accuracy and long equipment lifespan.
Technical Specifications
| Working width, mm | 1400-2500 |
| Design speed, m/min | 100-200 |
| Economic speed, m/min | 80-180 |
| Cutting length, mm | 450-1400 |
| Min. slitting width, mm | 180 |
| Cutting precision, mm | ±1 (average speed) |
| Knife configuration | 5 groups, 200 slitter knives |
