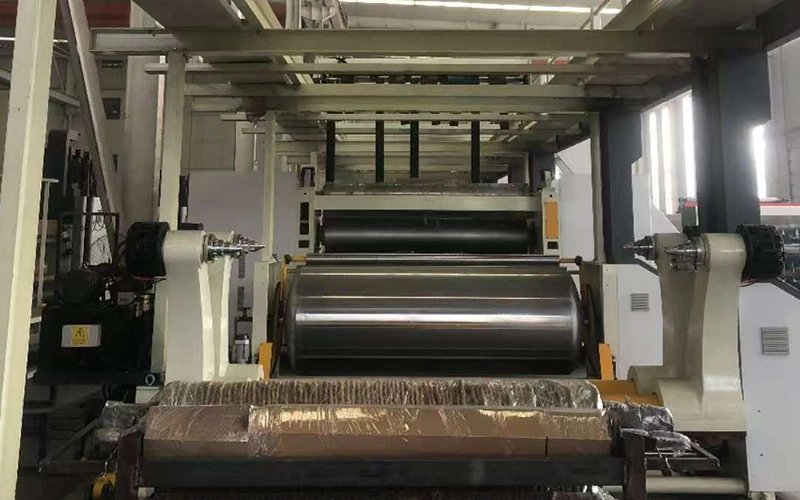

Corrugator Overhead Bridge
Bridge conveyor system for smooth web transfer and consistent tension control to support continuous corrugator production
Request a Quote
In the production of corrugated board, the overhead bridge (conveyor bridge) is mainly responsible for transporting and lifting the semi-finished corrugated paper, facilitating subsequent multi-layer lamination.
Features
- Equipped with an independent variable frequency motor lifting mechanism and PVC conveyor belt, ensuring the single-face corrugated paper maintains stable fluting during transport.
- All roller surfaces are precision ground and hard-chrome plated to enhance wear resistance and service life.
- Utilizes a vacuum adsorption tension control system with stepless adjustable airflow to accommodate different paper types.
- Features dual electric edge forming devices and an advanced positioning system to ensure precise alignment.
Technical Specifications
| Width, mm | 1400-2500 |
| Number of layers | 1 layer, 2 layers, 3 layers |
| Upper paper roller & tension roller diameter, mm | Ø127 |
| Conveying roller diameter, mm | Ø110 |
| Active tension roller diameter, mm | Ø127 |
| Paper passing roller & guide roller diameter, mm | Ø110 |
| Paper feed traction shaft diameter, mm | Ø110 |
| Single facer board lifting motor | 3kW, 380V, 50Hz, continuous duty (S1) |
| Bridge suction fan | 3kW, 380V, 50Hz, continuous duty (S1) |
| Paper width adjustment motor | 250W, 380V, 50Hz, short-time duty (S2) |
| Conveying speed, m/min | 0-150 |
