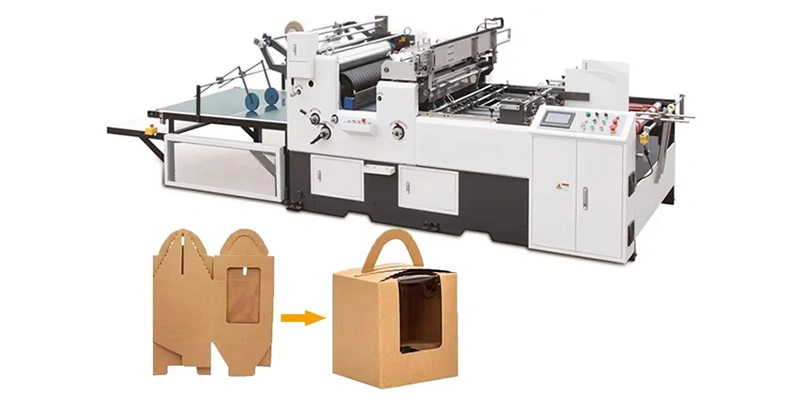

Window Patching Machine
Request a Quote
The window patching machine is designed with two independent feeding stations, allowing operators to prepare the next stack of sheets while the first station continues running. This setup significantly improves continuous production and overall output.
Structure

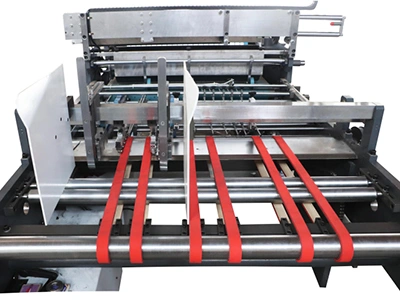

Sheet Feeding Section

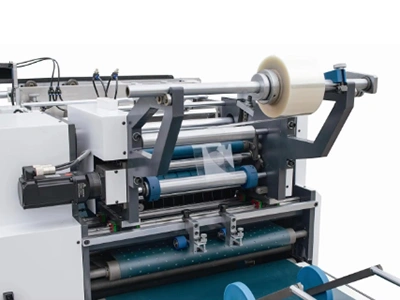

Window Patching Section

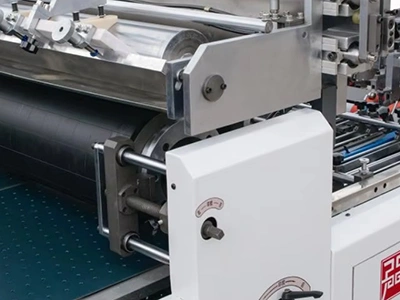

Cutting Section

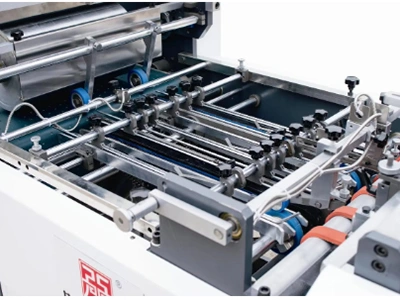

Board Conveying Section
Technical Specifications
| Model | ZM-STC650 |
| Max. paper feed size, mm | 650x650 |
| Min. paper feed size, mm | 100x100 |
| Max. patch size, mm | 380x450 |
| Min. patch size, mm | 40x60 |
| Film thickness, mm | 0.05-0.25 |
| Cardboard application range, g/m² | 200-1000 |
| Corrugated board thickness, mm | ≤ 4.0 |
| Max. mechanical speed, sheets/h | 10,000 |
| Total power, kW | 8 |
| Machine weight, T | 2 |
| Machine dimensions (LxWxH), mm | 4750x1550x1600 |
