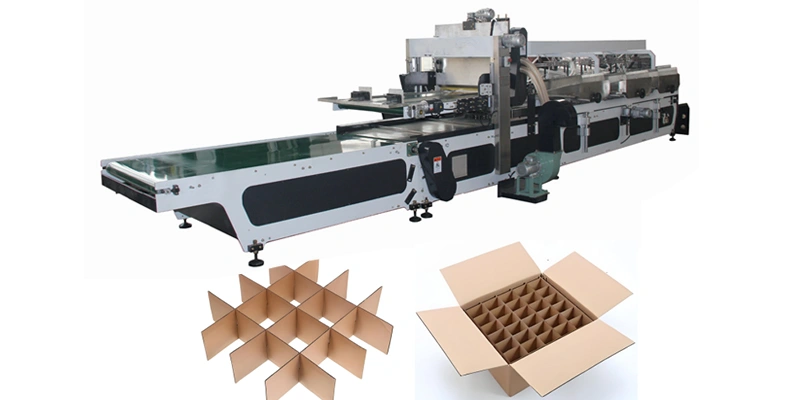

Automatic Partition Assembler Machine

Partition assembling machine for producing corrugated box divider inserts

Automatic Partition Assembler Machine
  • Automatic Partition Assembler Machine
  • Automatic Partition Assembler Machine
  • Automatic Partition Assembler Machine
  • Automatic Partition Assembler Machine
  • Automatic Partition Assembler Machine
Request a Quote

The fully automatic partition assembler offers complete automatic operation, enabling efficient and accurate assembly of carton partitions across a wide range of specifications. It delivers high processing precision and significantly boosts overall production efficiency.

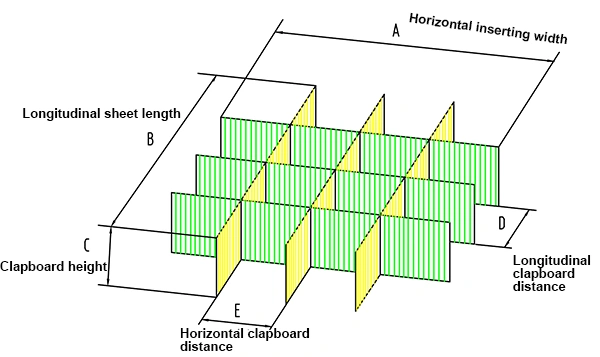

Technical Specifications
Technical Specifications
Name Unit Specification
Horizontal inserting width (A) mm 120-900
Longitudinal sheet length (B) mm 210-600
Clapboard height (C) mm 45-160
Longitudinal clapboard distance (D) mm 20-500
Horizontal clapboard distance (E) mm 45-800
Number of longitudinal sheets pcs 1-6
Number of horizontal clapboards pcs 1-25
Carton inserting opening width (F) mm > board thickness
Carton thickness (G) mm 2.5-8

Will equipment efficiency be affected if the machine is customized for a wider format?

No. When a wider format is customized, the equipment structure and transmission system are optimized accordingly. This ensures the automatic partition assembler maintains stable production efficiency, with no impact on the corrugated partition assembly process.
