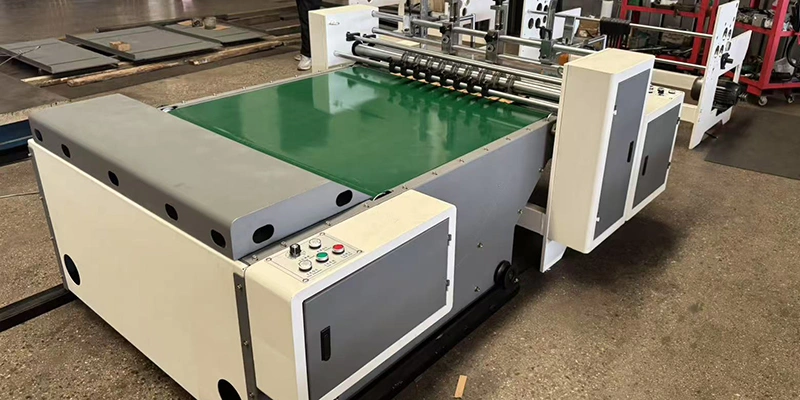

Partition Slotter Slitter Machine

Corrugated board slitting & cutting machine for making corrugated partitions

Partition Slotter Slitter Machine
  • Partition Slotter Slitter Machine
  • Partition Slotter Slitter Machine
  • Partition Slotter Slitter Machine
Request a Quote
Structure
Push-Type Feeder Push-Type Feeder

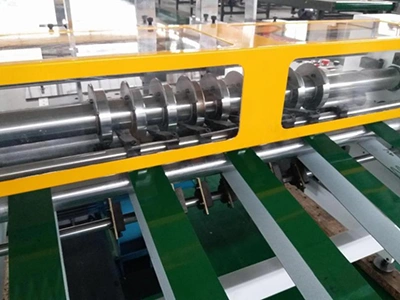

Cutting Section Cutting Section

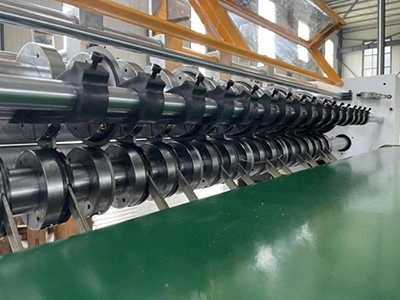

Slitting Section Slitting Section
Technical Specifications
Model GBJ-1000 GBJ-1200 GBJ-1400 GBJ-1600 GBJ-1800
Slot blade plate 300mm Max. 1000x280mm 1150x280mm 1350x280mm 1550x280mm 1750x280mm
Min. 100x75mm 100x75mm 100x75mm 100x75mm 100x75mm
Slot blade plate 400mm Max. 1000x380mm 1150x380mm 1350x380mm 1550x380mm 1750x380mm
Min. 100x90mm 100x90mm 100x90mm 100x90mm 100x90mm
Slot blade plate 600mm Max. 950x600mm 1150x600mm 1350x600mm 1550x600mm 1750x600mm
Min. 200x110mm 200x110mm 200x110mm 200x110mm 200x110mm
Min. slotting distance, mm 45
Slot knife thickness, mm 5 / 7
Number of slot knives 9 knives (expandable according to customer requirements)
Working speed, pcs/min 0-120
Power, kW 1.1
Machine dimensions, m 1.6x1.5x1.3 1.6x1.7x1.3 1.7x1.9x1.3 1.9X2X1.3 2.2x2.2x1.3
