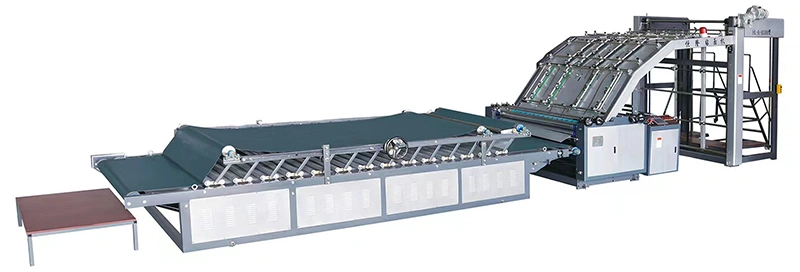

Semi-Automatic Flute Laminating Machine (Lifting Type)

Request a Quote

• Capable of stacking up to 1.5 m of sheets in a single batch; the stack automatically rises during feeding, reducing manual effort and improving feeding efficiency.
• Bottom sheets are fed via an air-suction system that automatically tracks the manual feeding speed of the top sheets, minimizing alignment errors.
• New front-lay positioning system ensures high accuracy; bottom sheets never advance prematurely, and top-sheet overfeed is adjustable to suit different processing requirements.
• Equipped with touchscreen / PLC control system for stable electrical operation; supports automatic fault alarms for quick troubleshooting and easier operation.
• Roller pressure can be adjusted on one side; when changing bottom sheet specifications, simply adjust the roller to the required scale, eliminating trial-and-error for fast setup.
• Fully automatic gluing system adds glue during lamination, combined with glue circulation and recovery to prevent waste; the metering roller’s line speed is scientifically designed for even application and to avoid splashing at high speed.

Glue roller cleaning system ensures the bottom roller is thoroughly cleaned, preventing glue adhesion on the corrugated sheet’s underside and eliminating frequent doctor blade changes; independent water tank controls circulation for easier maintenance.

Floating, movable pressing bed prevents corrugated paper from being crushed while ensuring flat, smooth boards, maintaining product appearance and strength.
