Paper Core Making Machine

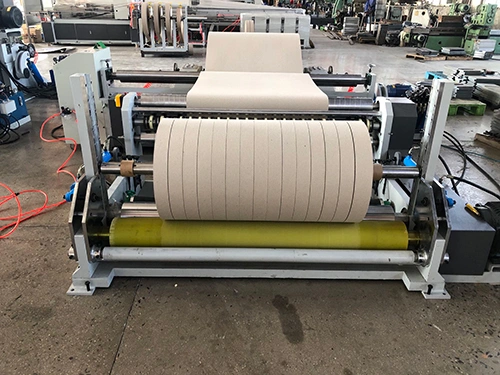

Paper Slitter Rewinder
Request a Quote
| Max. paper width | 1600mm |
| Max. paper roll diameter | 1200mm |
| Rewinding diameter | 1200mm |
| Min. slitting width | >35mm |
| Paper grammage | 80-600g |
| Number of slitting knives | 18 sets |
| Slitting speed | 1-150m/min |
| Speed control | Variable frequency drive (VFD) |
| Main motor power | 11kW |
| Total weight | 4300kg |

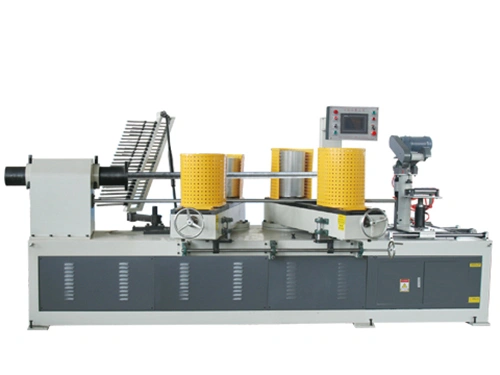

Paper Tube Making Machine
Request a Quote
| Item | Specifications |
| Model | 200 four-head CNC paper tube making machine |
| Paper layers | 3-25 layers |
| Tube inner diameter | Ø30-200mm |
| Tube wall thickness | 2-15mm |
| Winding speed | 0-27m/min |
| Fixed length control | CNC, optical control |
| Winding heads | Four heads, resistance-free |
| Cutting method | CNC automatic tracking cutting |
| Core mandrel fixing method | Flange tightening |
| Gluing system | Double-sided gluing |
| Control mode | Variable frequency control |
| Number of operators | 1-3 persons |
| Main machine dimensions (LxWxH) | 5200x1900x2100mm |
| Installation footprint (LxW) | 20000x9000mm |
| Main machine weight | 3450kg |
| Total weight | 4460kg |

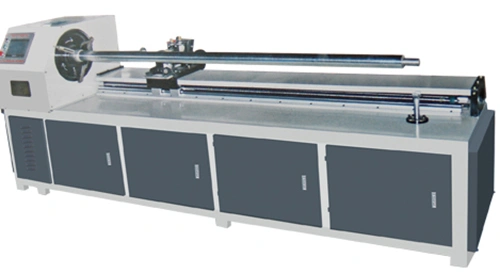

Paper Tube Cutting Machine
Request a Quote
| Tube inner diameter | Ø76-152mm |
| Tube wall thickness | 3-15mm |
| Cutting length | 20-2700mm |
| Cutting knife sets | 1 set (standard) |
| Working air pressure | 0.6MPa |
| Control mode | CNC control |
| Motor power | 3.0kW + 1.5kW |
| Number of operators | 1 |
| Machine dimensions (LxWxH) | 3900x1500x1300mm |
| Total weight | 1100kg |
