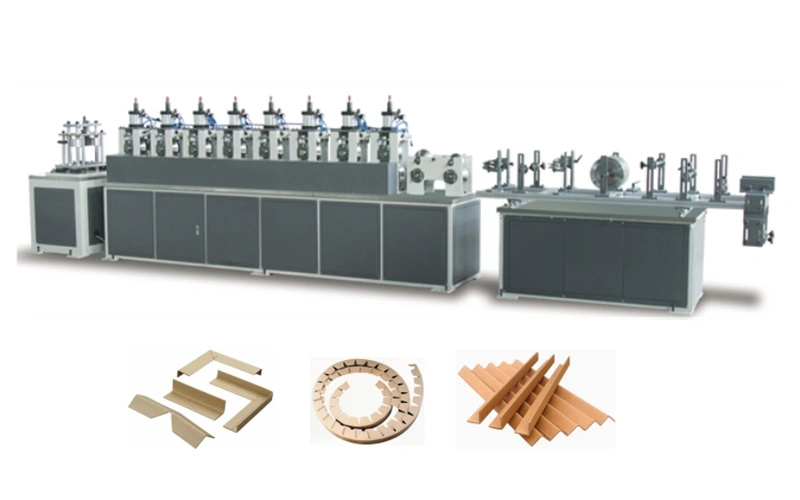

Cardboard Corner Protector Machine

•
•
•

Request a Quote

Technical Specifications

Cardboard corner width	20-100mm
Cardboard corner length	30-9000mm
Cardboard corner thickness	2-8mm
Production speed	0-40m/min, 0-60m/min
Control mode	CNC control
Main motor power	7.5kW + 4.3kWx2
Raw material – surface paper	150-220g/m²
Raw material – core paper	300-700g/m²
Cutting mode	Servo tracking cutting
Number of operators	1-2
Machine dimensions (LxWxH)	9300x700x1400mm
Installation area (LxW), m	28x3
Machine weight	2975kg
Total weight	5715kg
