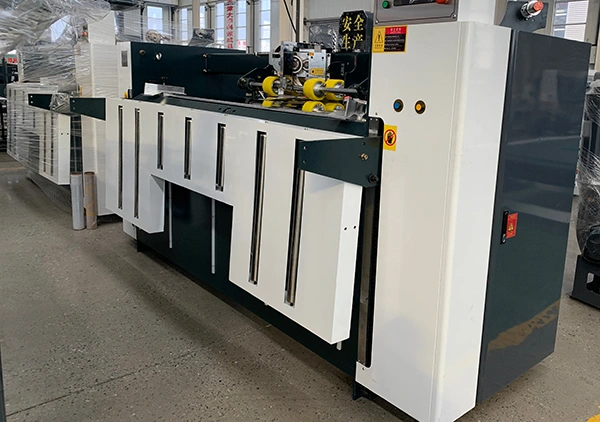

Semi-Automatic Box Stitching Machine (Single Head)
Corrugated cardboard stitcher for stapling single-piece corrugated boxes
The single-head semi-automatic box stitching machine is an efficient solution designed for processing single-piece cartons. It supports a wide range of single-piece box specifications, combining ease of operation with stable performance. This machine is ideal for boosting productivity in small to medium-volume carton manufacturing.
Request a Quote
Structure

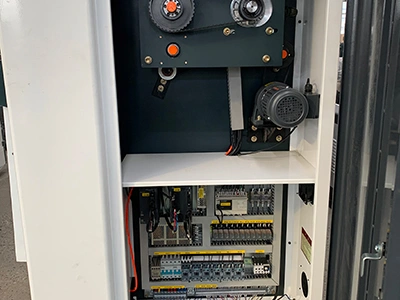

Electrical Cabinet

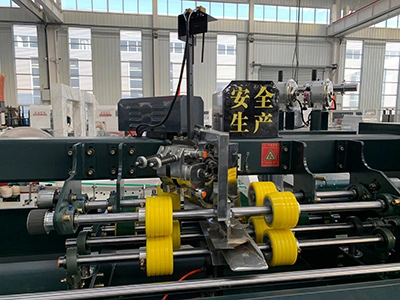

Stitching Head

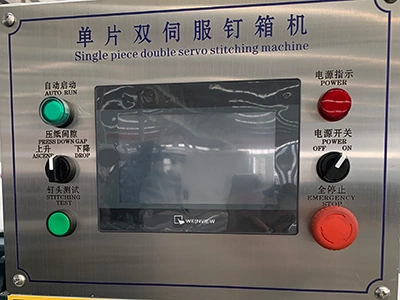

Control Panel
Technical Specifications
| Item | | |
| Model | BDJ-2000B | BDJ-2500B |
| Max. size (A+B)x2, mm | 3740 (1100+770) | 4740 |
| Min. size (A+B)x2, mm | 700 | 560 |
| Max. size (C+D+C), mm | 2500 | 2500 |
| Min. size (C+D+C), mm | 400 | 450 |
| Min. rock cover C, mm | 20 | 75 |
| Max. rock cover C, mm | 310 | 500 (optional) |
| Max. width B, mm | 770 | 920 |
| Min. width B, mm | 150 | 150 |
| Max. length A, mm | 1100 | 1450 |
| Min. length A, mm | 200 | 200 |
| Max. height D, mm | 2000 | 2000 |
| Min. height D, mm | 150 | 150 |
| Max. tongue width E, mm | 40 | 40 |
| Max. feeder height, mm | 900 | 900 |
| Machine dimensions (LxWxH), mm | 2850x1700x1800 | 3300x1700x1800 |
| Machine weight, T | 2 | 2.3 |
| Machine speed, nails/min | 600 | 600 |
| Number of stitches | 2-99 | 2-99 |

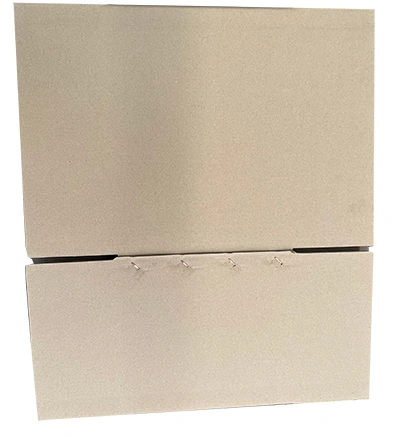

Print Sample Images
