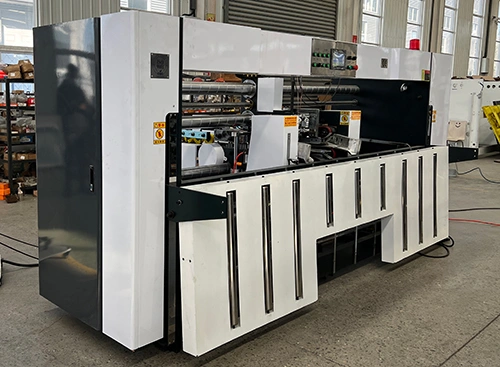

Semi-Automatic Box Stitching Machine (Double Head)
Corrugated cardboard stitcher for stapling two-piece corrugated boxes
The double-head semi-automatic box stitching machine is an efficient solution designed specifically for processing two-piece corrugated cartons. It focuses on meeting the core requirements of carton joining and stitching, while maintaining operational flexibility and stable performance. The machine is suitable for small to medium production volumes and supports a wide range of two-piece carton specifications.
Request a Quote
Structure

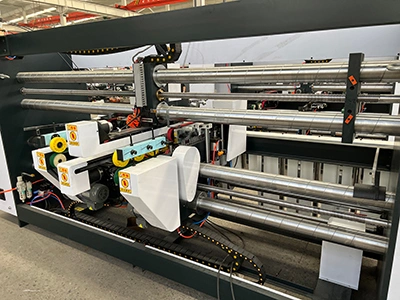

Sheet Feeding Section

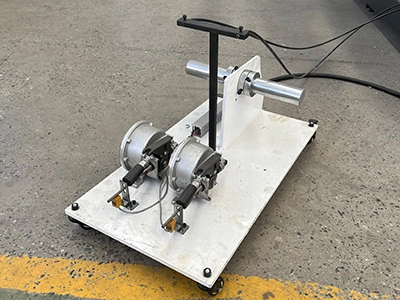

Wire Feeding Section

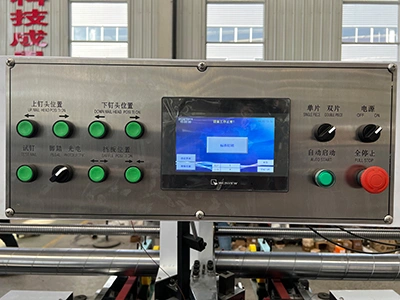

Control Panel

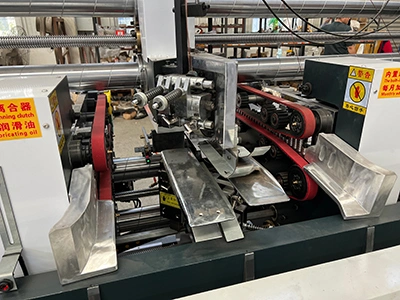

Stitching Head Output Section

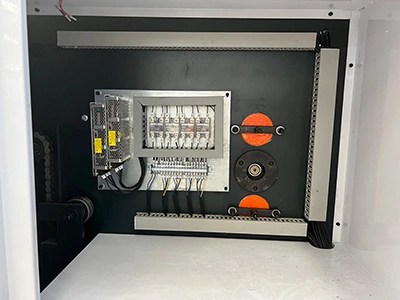

Electrical Cabinet

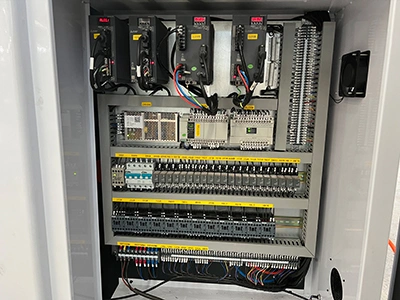

Electrical Components

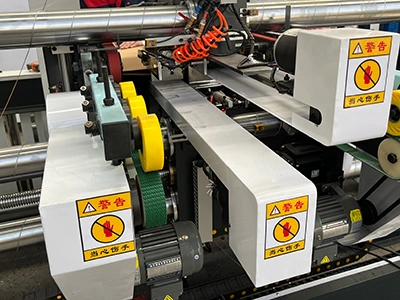

Stitching Head Feeding Section

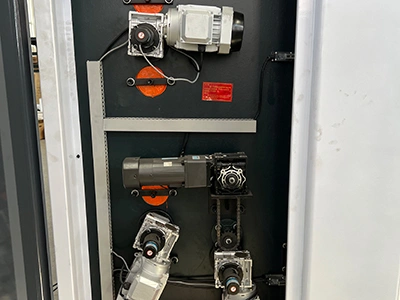

Motor

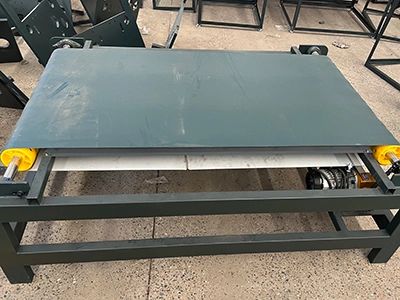

Belt Conveyor
Output Drive Section
Technical Specifications
| Model | | | |
| Max. paper size (A+B)x2, mm | 3200 | 4000 | 5000 |
| Min. paper size (A+B)x2, mm | 980 | 980 | 980 |
| Max. carton length A, mm | 1480 | 1880 | 2380 |
| Min. carton length A, mm | 370 | 370 | 370 |
| Max. carton width B, mm | 800 | 1000 | 1250 |
| Min. carton width B, mm | 120 | 120 | 120 |
| Max. paper height (C+D+C), mm | 2900 | 2900 | 2900 |
| Min. paper height (C+D+C), mm | 400 | 400 | 400 |
| Max. rock cover C, mm | 450 (standard) / 600 (optional) | 450 (standard) / 600 (optional) | 450 (standard) / 600 (optional) |
| Min. rock cover C, mm | 80 (standard) / 20 (optional) | 80 (standard) / 20 (optional) | 80 (standard) / 20 (optional) |
| Max. height D, mm | 2000 | 2000 | 2000 |
| Min. height D, mm | 200 | 200 | 200 |
| Max. tongue width, mm | 40 | 40 | 40 |
| Stitch pitch, mm | 30-120 | 30-120 | 30-120 |
| Number of stitches | 2-99 | 2-99 | 2-99 |
| Stitching speed, nails/min | 600 | 600 | 600 |
| Machine weight, T | 3 | 3.2 | 3.5 |
