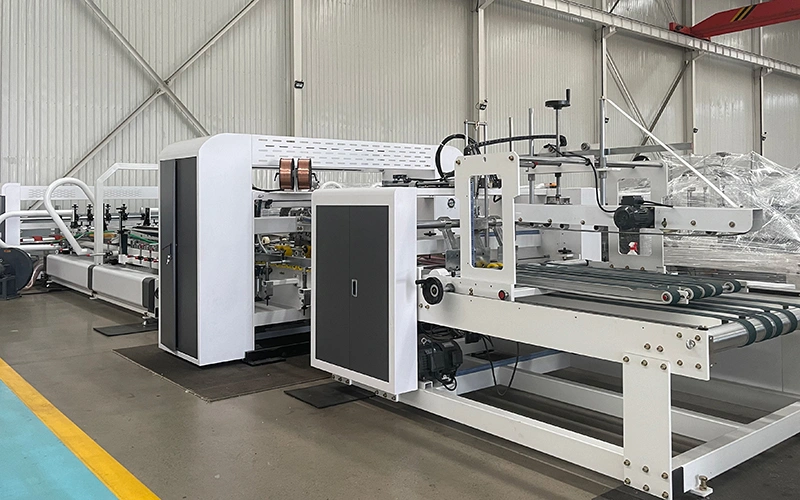

Automatic Box Stitching Machine
Automatic folder stitcher machine for making corrugated boxes
Request a Quote
Automatic box stitching machine uses computer control for one-touch job changeover and is equipped with an automatic feeding system. It supports both single-stitch and double-stitch modes, making it suitable for a wide range of carton production requirements.
Structure

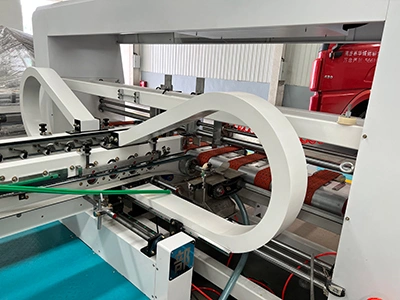

Lead-Edge Feeder

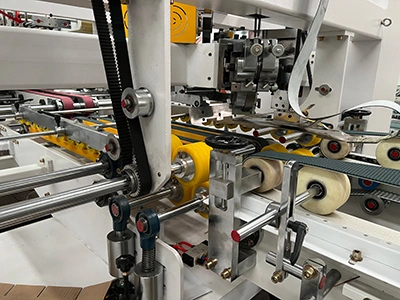

Stitching Head

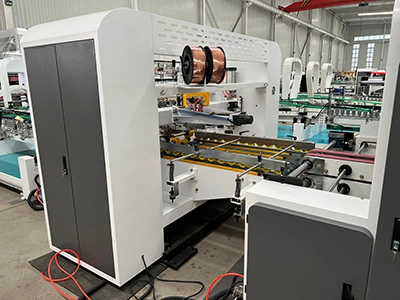

Stacker Section

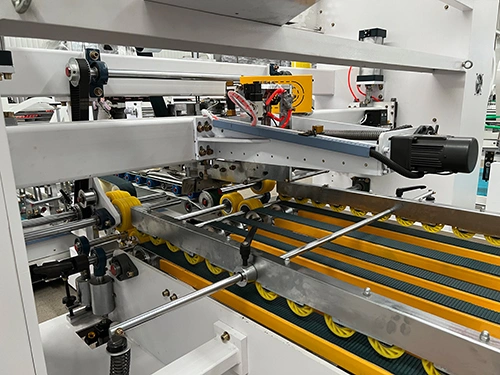

Output Section

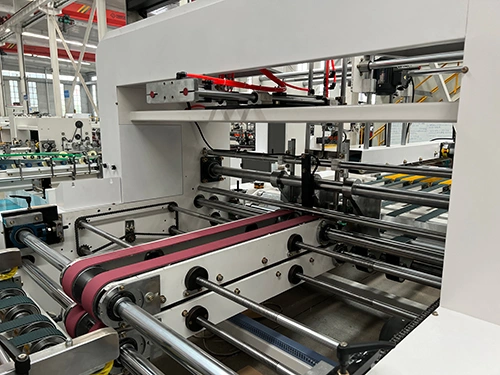

Output Section

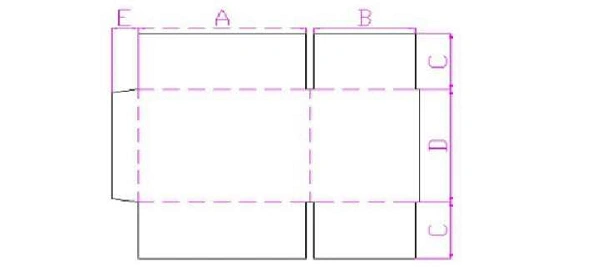

Technical Specifications
| Model | QH1226 | |
| Gluer | Stitcher | |
| Max. size (A+B)x2, mm | 2600 | |
| Min. size (A+B)x2, mm | 420 | 900 |
| Max. A, mm | 900 | |
| Min. A, mm | 130 | 270 |
| Max. B, mm | 650 | |
| Min. B, mm | 80 | 180 |
| Max. size (C+D+C), mm | 1200 | |
| Min. size (C+D+C), mm | 170 | 300 |
| Max. C, mm | 350 | |
| Min. C, mm | 50 | |
| Min. D, mm | 100 | |

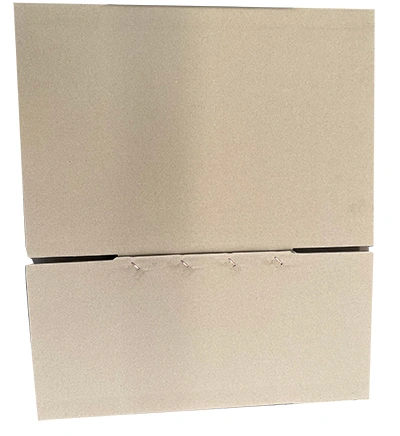

Sample Images
