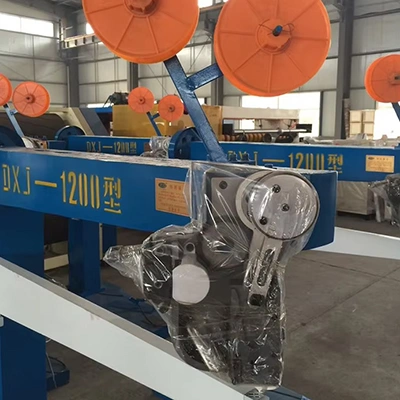

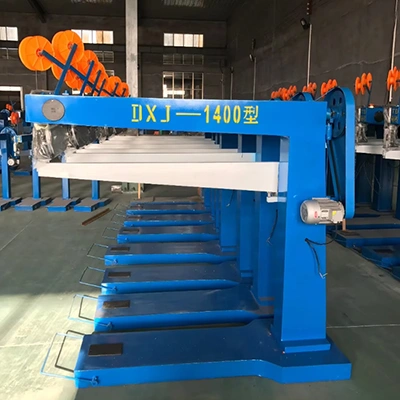

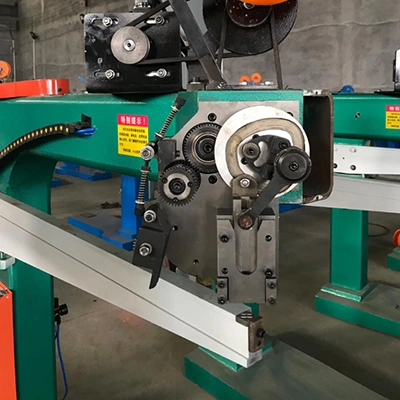

Arm Stitching Machine

Arm stitcher for stapling cardboard sheets and corrugated boxes

Arm Stitching Machine
Arm Stitching Machine
Arm Stitching Machine
Request a Quote
Technical Specifications
Item Model 1200 Model 1500 Model 1800 Model 2000
Speed, nails/min 0-600 0-600 0-600 0-600
Total power, kW 2.5 2.5 3 3
Push plate effective travel, mm 1000 1300 1500 1800
Machine length, mm 1500 1800 2100 2300
Machine width, mm 600 600 620 650
Operating height, mm 1080 1080 1080 1080
Machine weight, kg 400 500 550 600
Applicable wire size 17# 17# 17# 17#
Stitching method Double nails Double nails Double nails Double nails

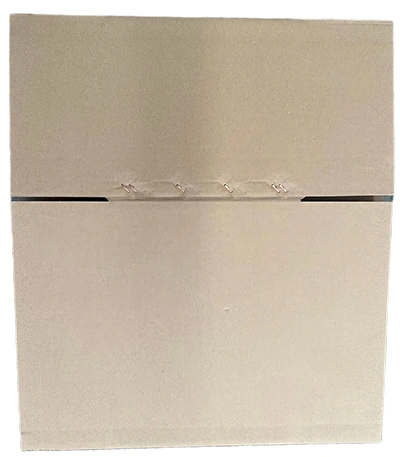

Print Sample Images
Print Sample Images
